EWAY CASA WINDOW TREATMENTS

EWAY CASA Spring Hand-Push Outdoors Roller Blinds Blackout Shades Zip Track Sunscreen Shade Exterior Blinds for TerraceJS-ORB-SD

EWAY CASA Spring Hand-Push Outdoors Roller Blinds Blackout Shades Zip Track Sunscreen Shade Exterior Blinds for TerraceJS-ORB-SD

$80.00 USD
$160.00 USD $80.00 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Color
Size
Ships From

Pre-Order Note

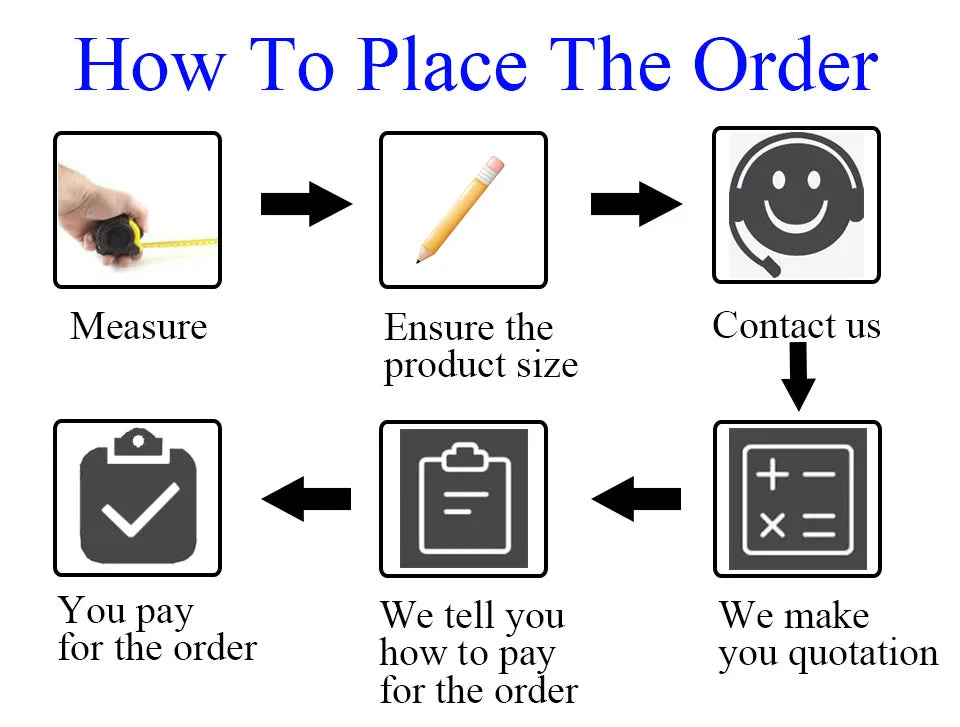

1.It's a custom order. Please contact us before place an order as the amount of the order is subject to the size of the blinds and different motor systems.

2. How to calculate the price? Blind W (m)* H(m) * Unit Price (Sq.m)* Quantity + Motor Unit Price * Quantity (PC).

3. The product is shipped from China. The freight cost shown online is just for reference. Please click "Add to Quote" for accurate price.




PRODUCT DESCRIPTION

Item Name: Windproof Hand-push Roller Blind

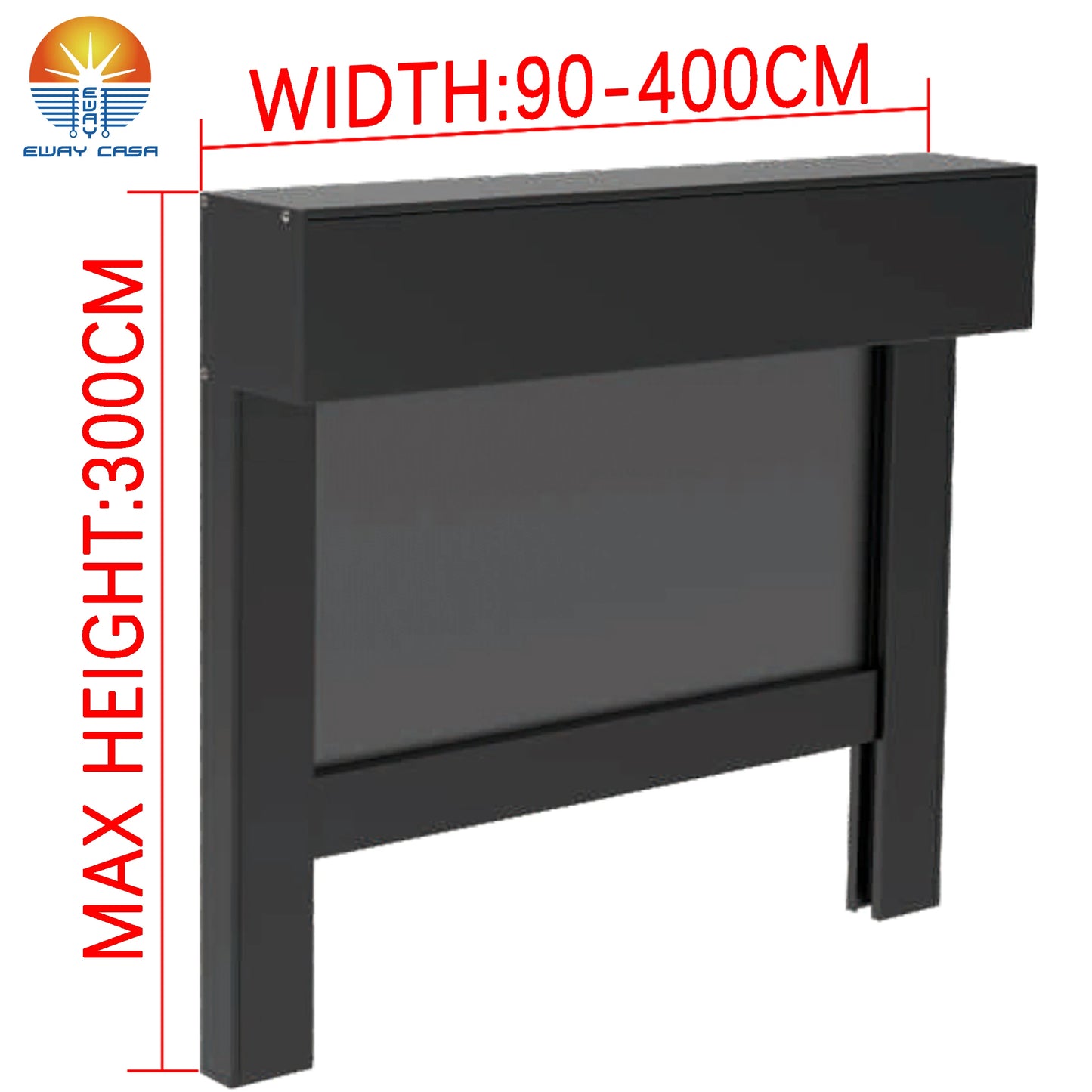

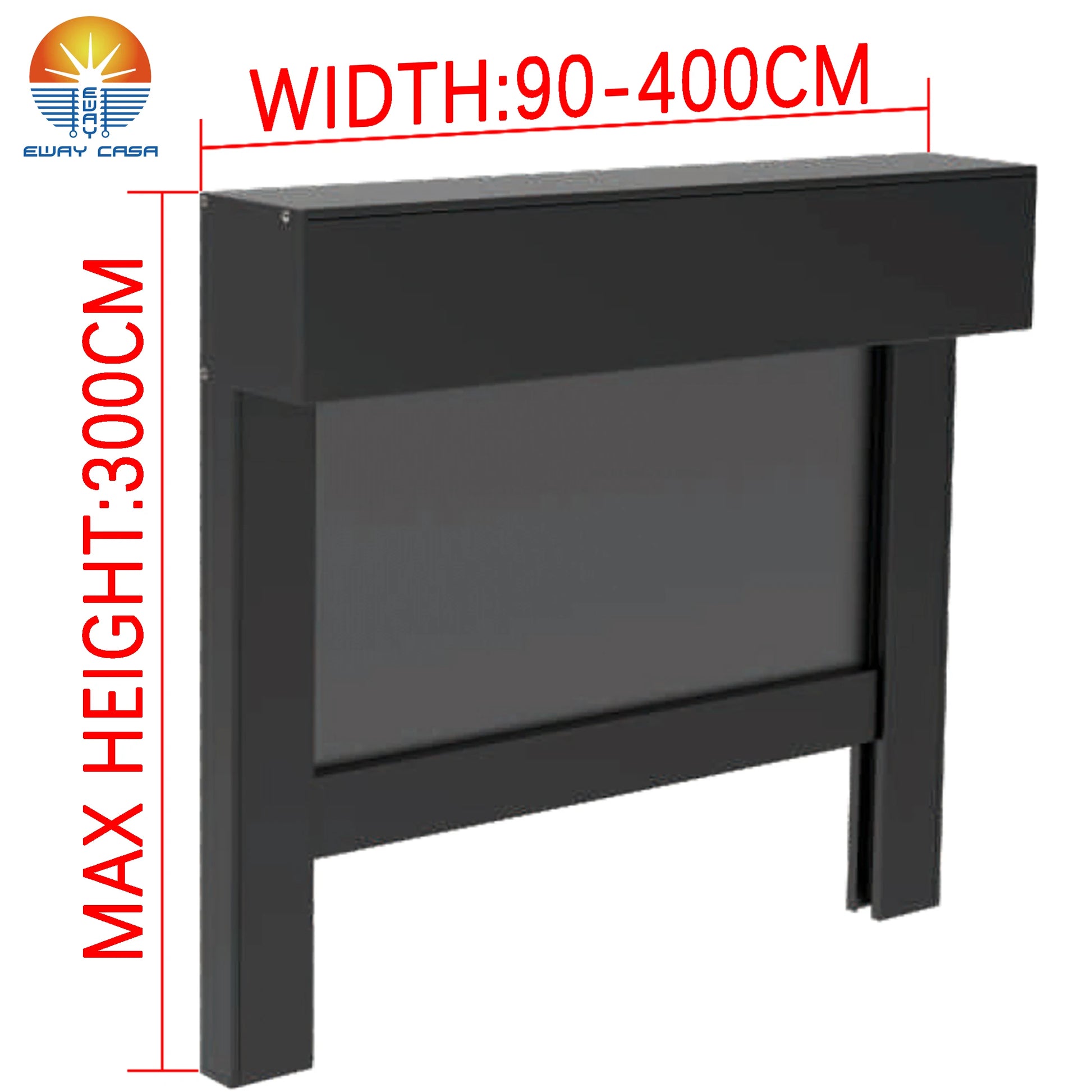

Min. Width & Max. Width: 950mm-4000mm
Max. Height: 2500mm recommended


MOQ: 3 SQ.M/PC

If the area of the blind is less than 3 SQ.M, we still charge based on 3 SQ.M.

If the blind is say 3.5 SQ.M, we will charge based on 4 SQ.M. Only on basis of an integer.

If you are confused, don't worry, we willl send you the quote after the sizes given.

Compostion: Fabrics+ Metal Frame

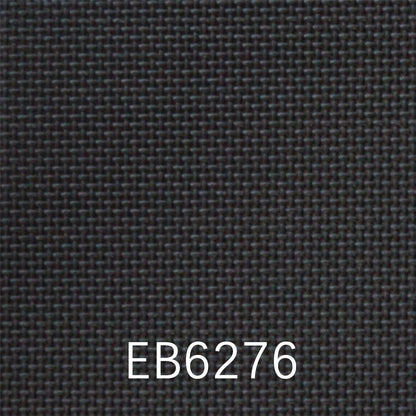

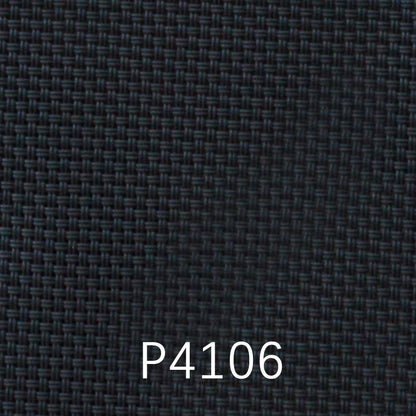

Fabrics： Polyester+ PVC

Frame：Aluminum Alloy

Frame Specifications: WR100/WR110/WR120

FEATURES

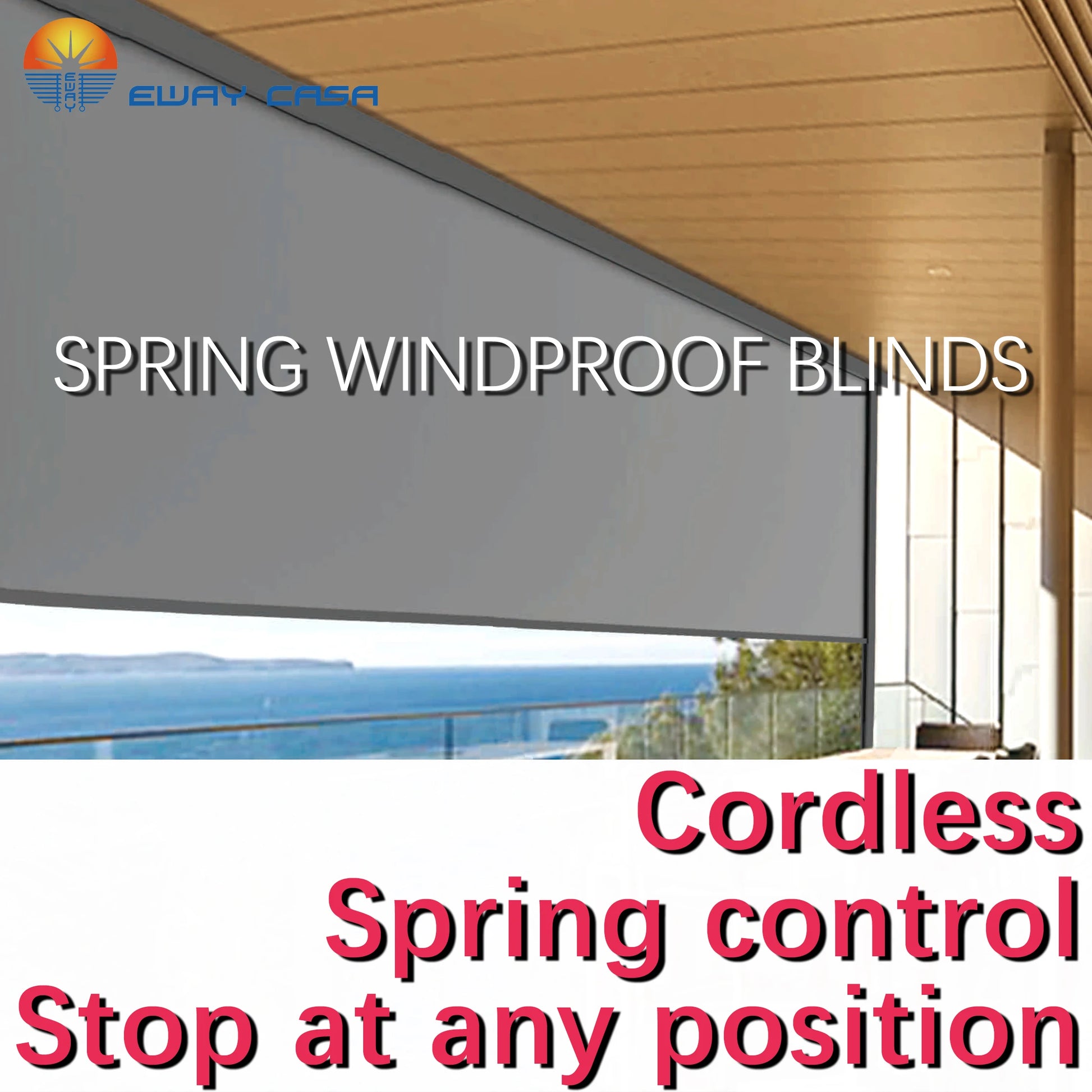

Spring control, Cordless, Stop at any position, See-through, Blackout

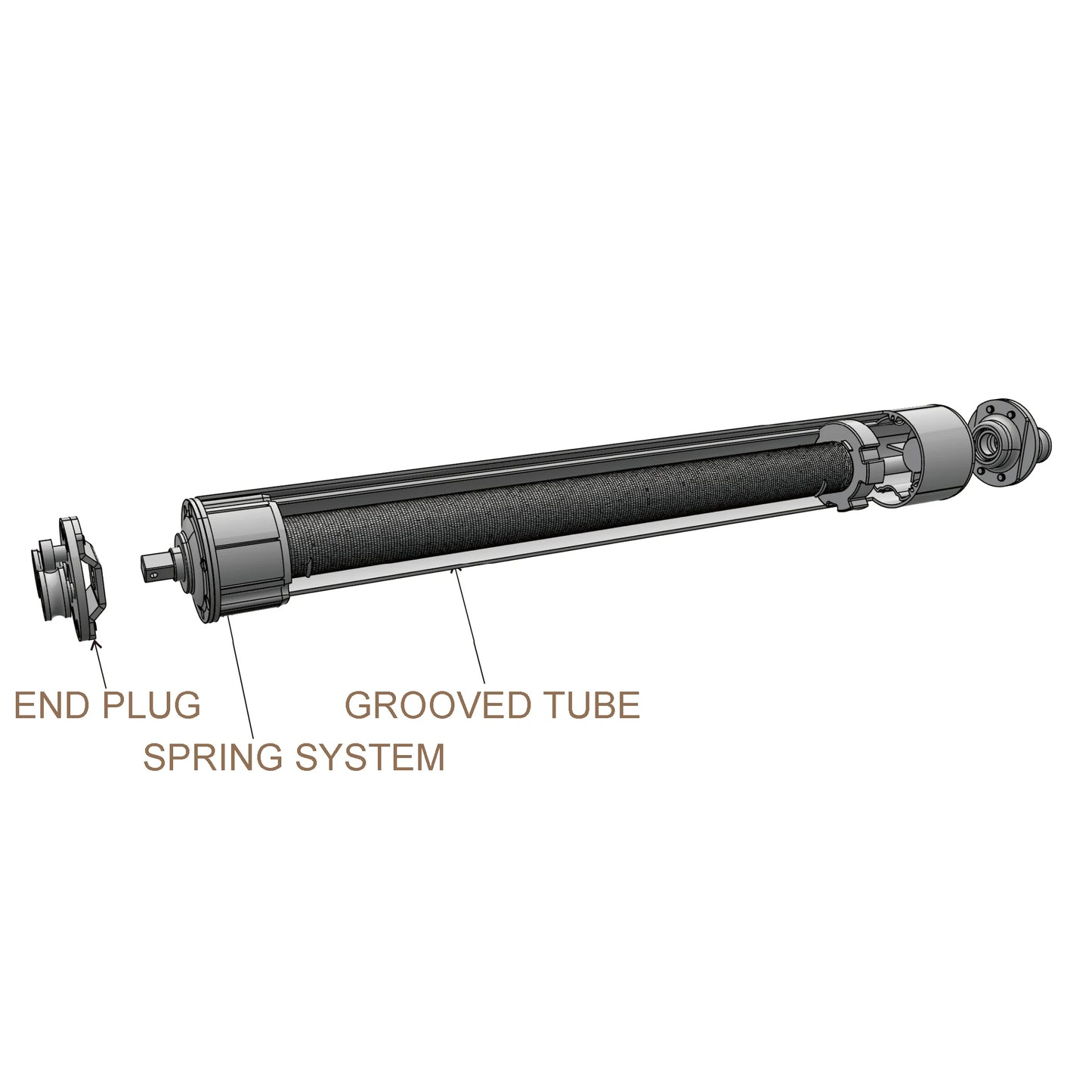

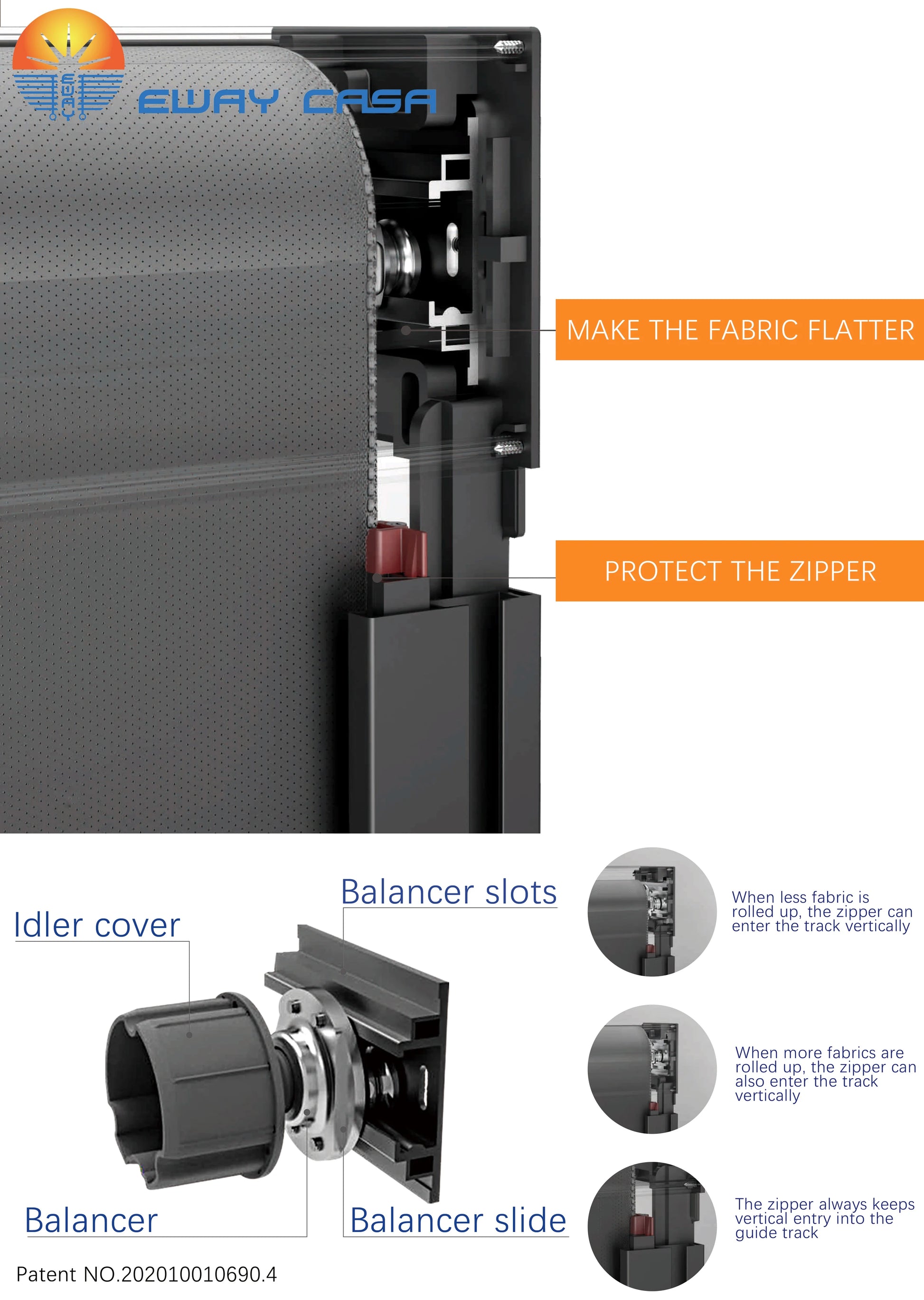

SMART AUTO BALANCER

By using double groove bearings, ball bearings and adjustable steel slide rails, the back wheel can automatically adjust the position of the fabric according to how much the fabric is rolled in, so as to protect  the zipper throughout the pulling process.

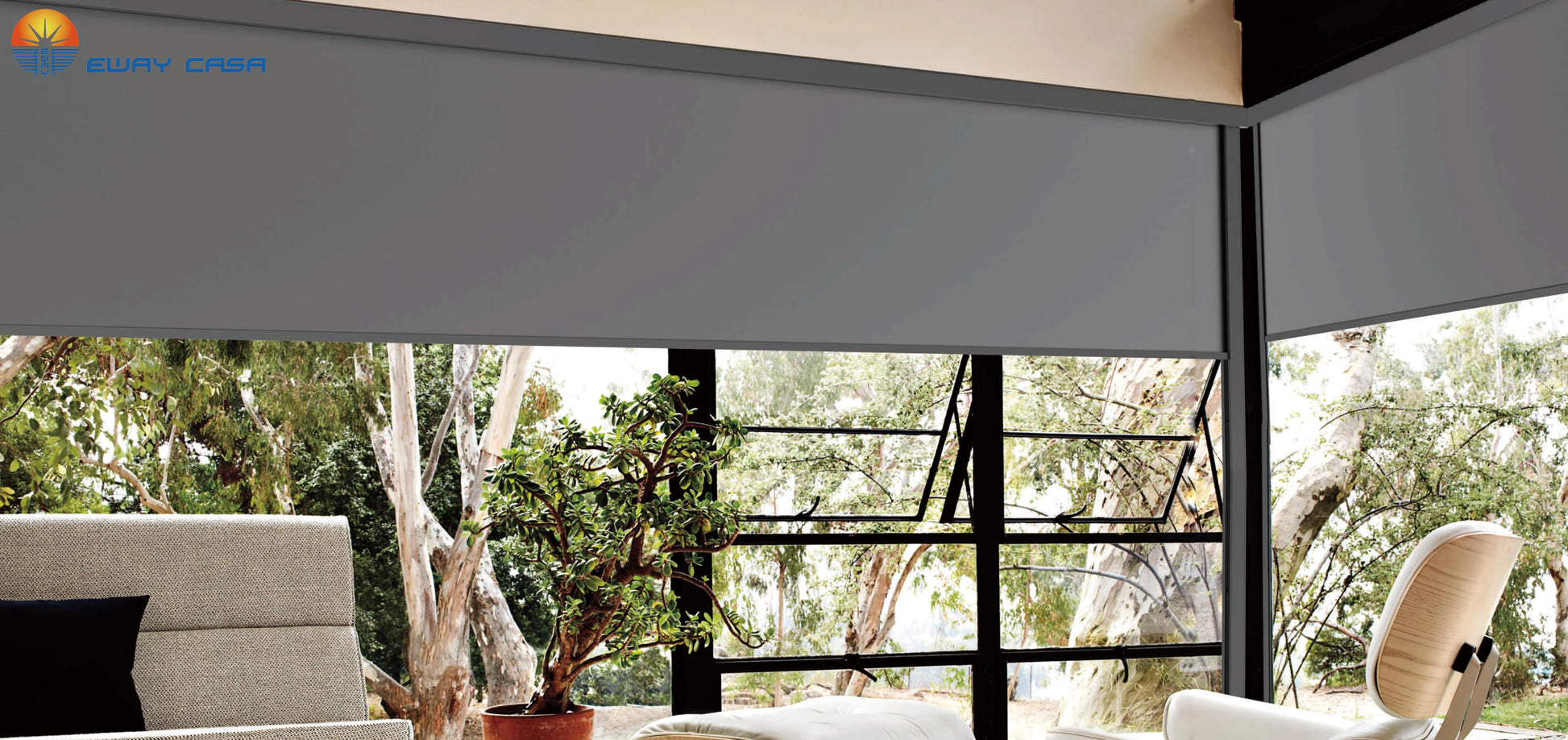

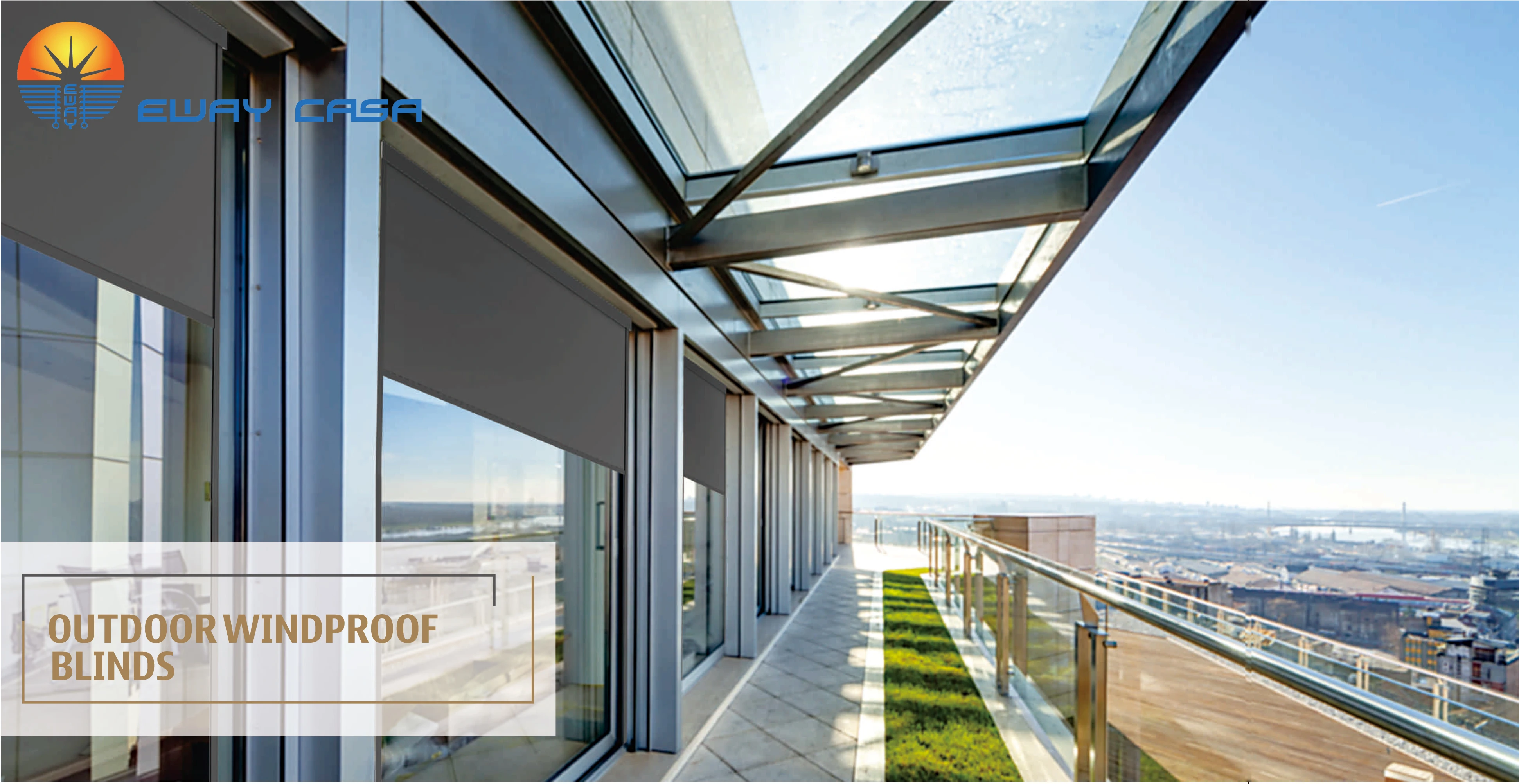

APPLICATIONS

This product is suitable for both indoor and outdoor.

This outdoor product is wind resistant. However, it is recommended to roll up the fabric to protect both the fabrics and the tracks when the wind is particularly strong.

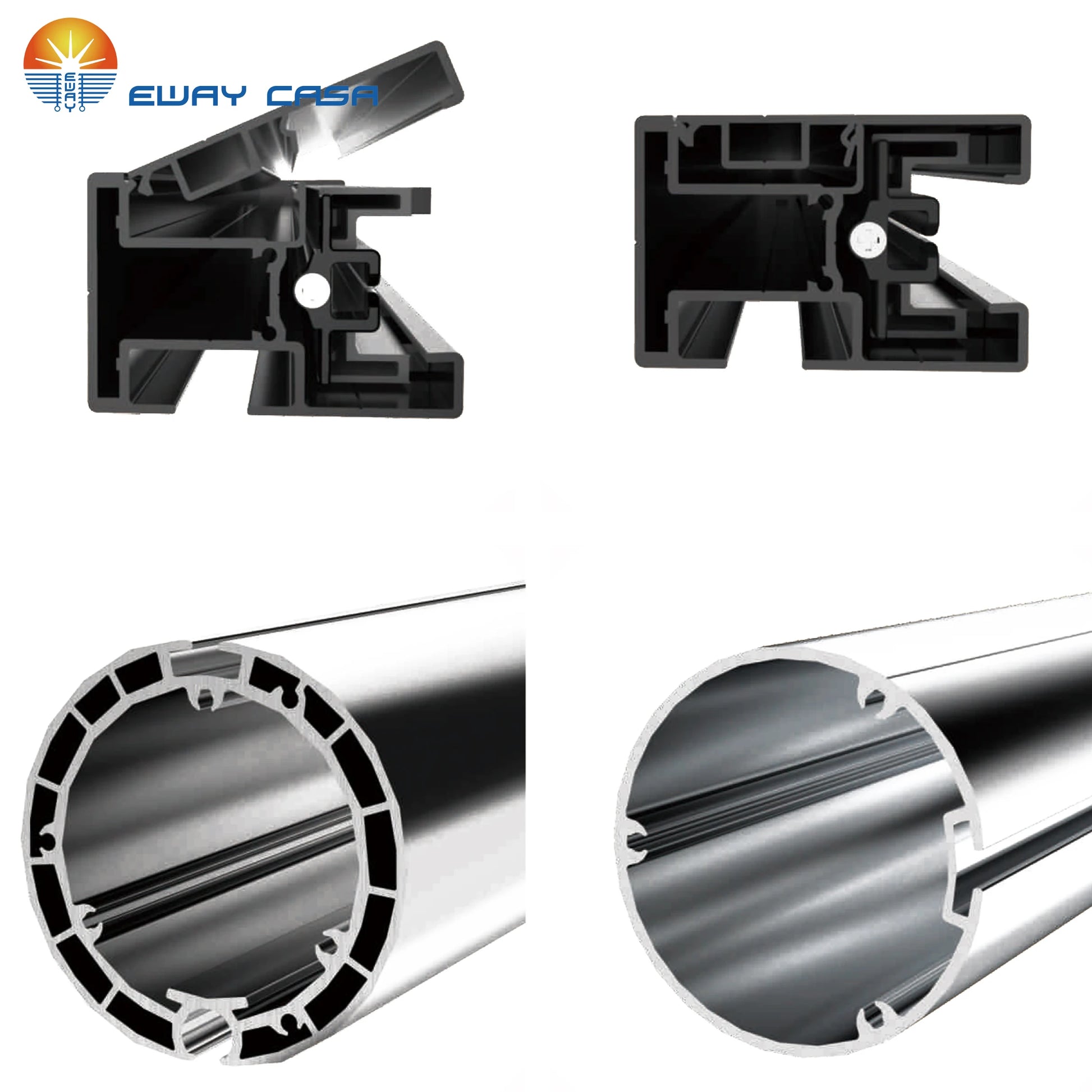

FRAME DETAILS

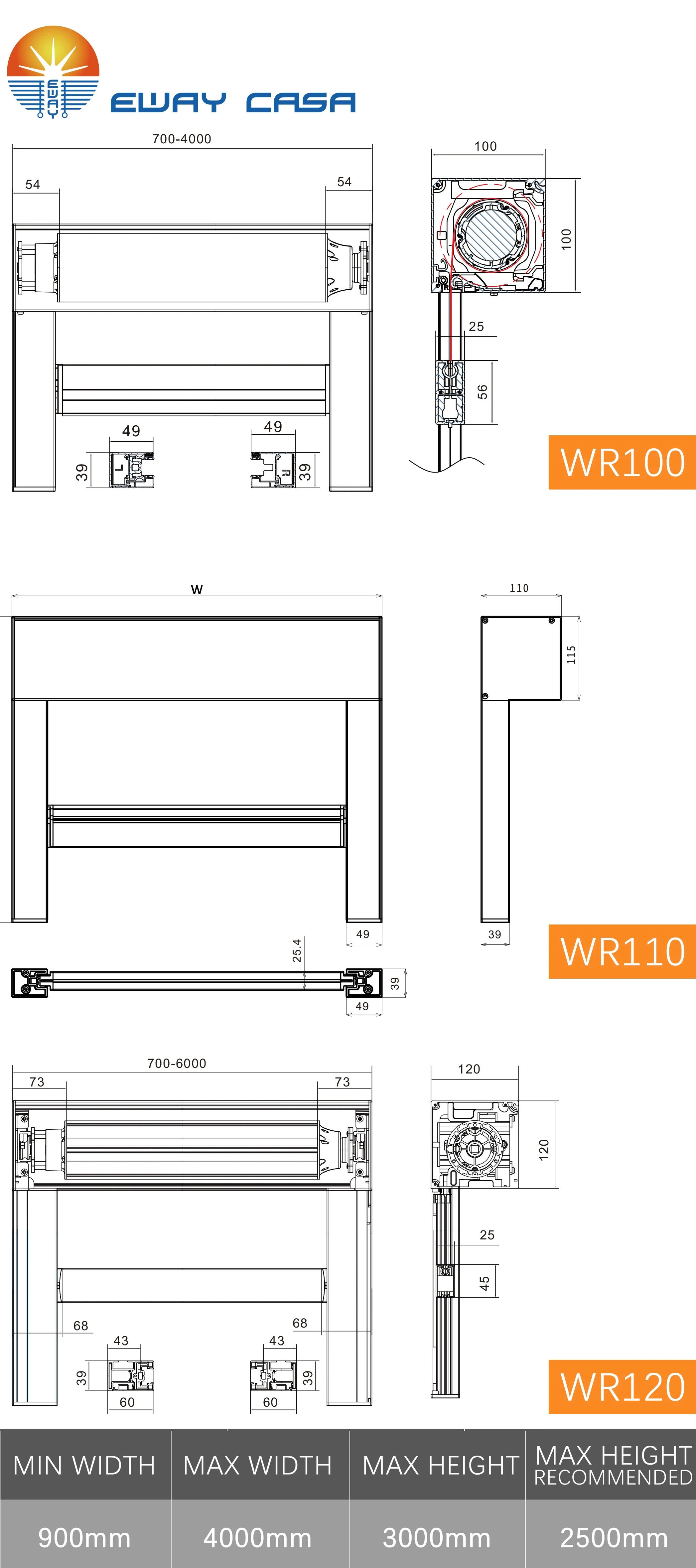

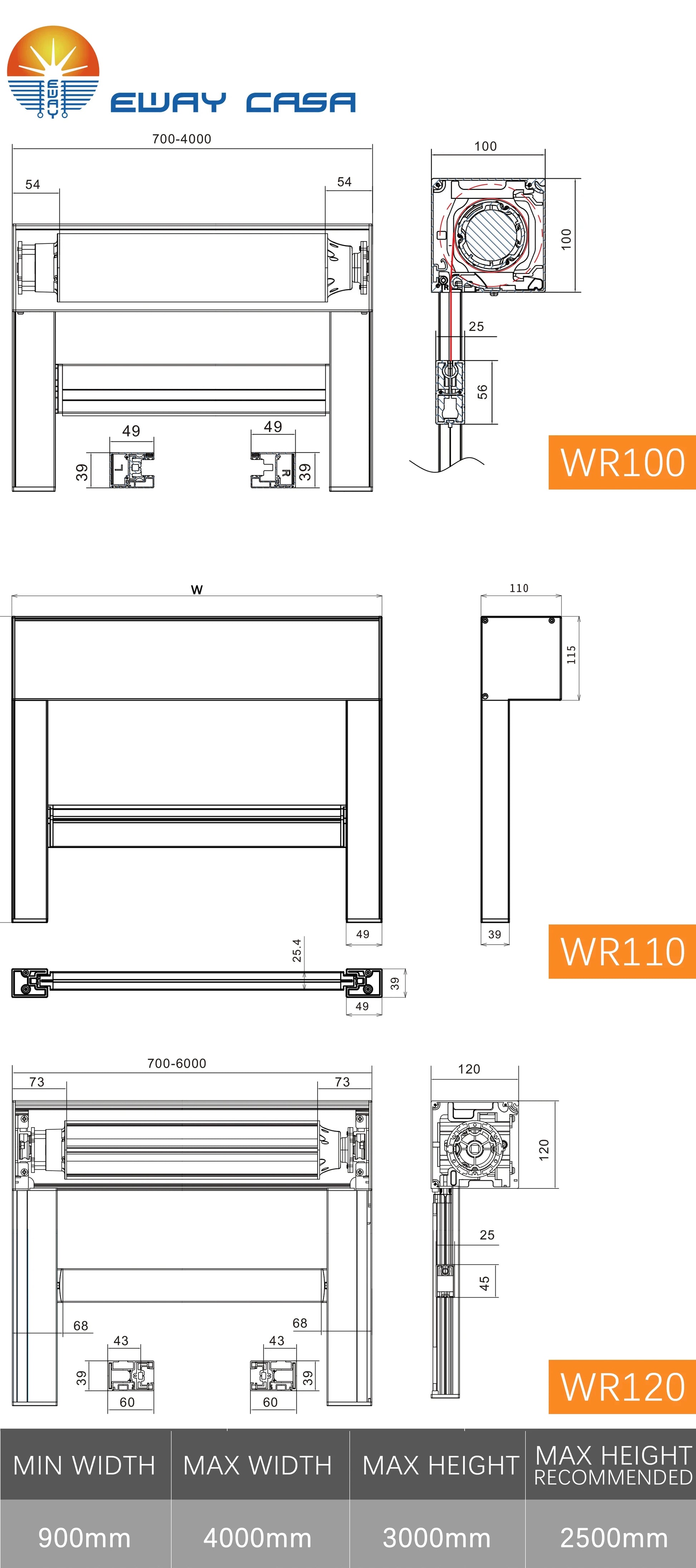

Different Frame Parameters

The heavy duty frame comes into 3 specifications.

WR100/110/120 to suit in the different window frames.

All frames are equipped with wear-resistant strips at the main body of the cover and the fabric outlet on the cover, which greatly reduces the friction between the fabric and the cover, reduces noise, and extends usage cycle.

For Frame WR120, It benefits from the balancer's ability to automatically adjust the center position of the automatic groove tube through the weight of the fabric and the low rail, ensuring that the fabric can always enter the zipper guide at a small angle, reducing friction and friction noise, and ensuring the zipper and system Service life.

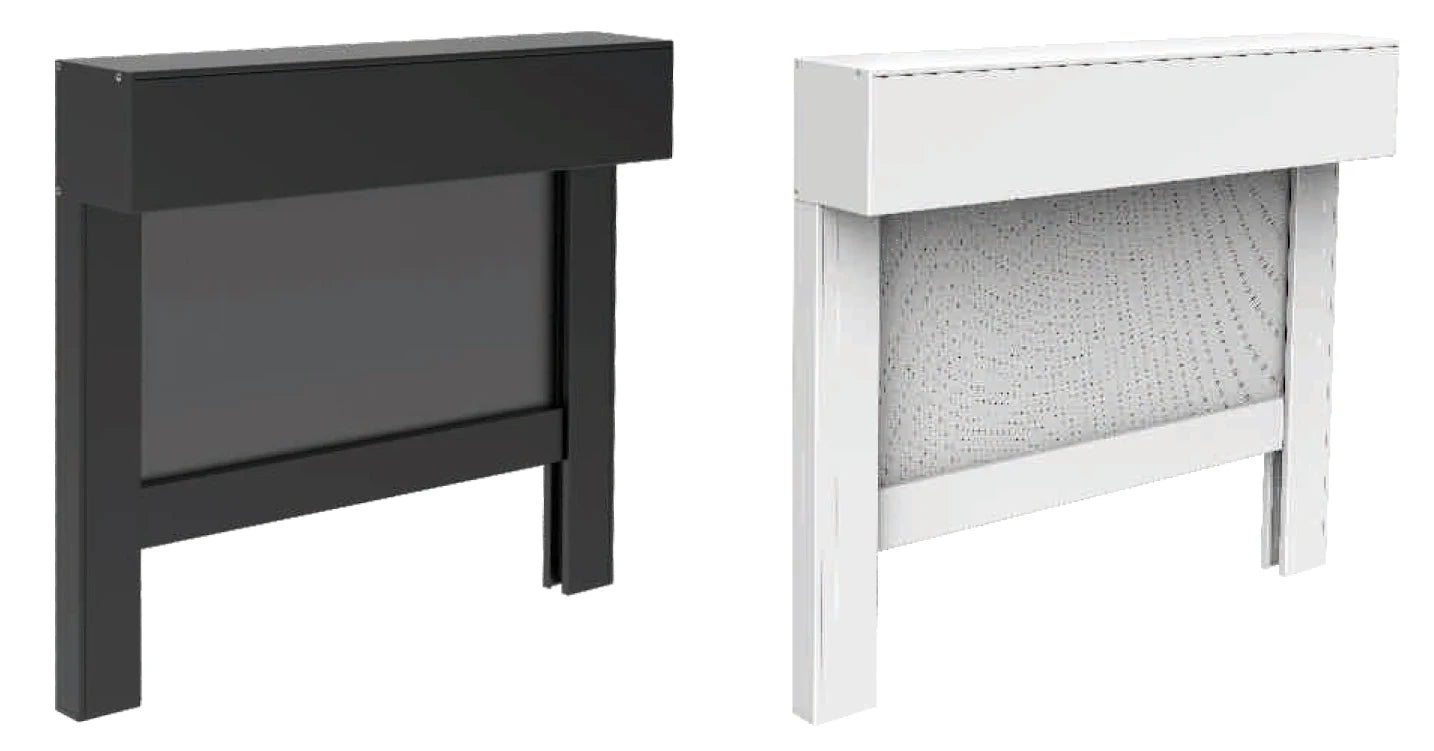

MULTIPLE COLOR

Frame Color Options

There are two selectable frame colors. And other colors are coming soon.

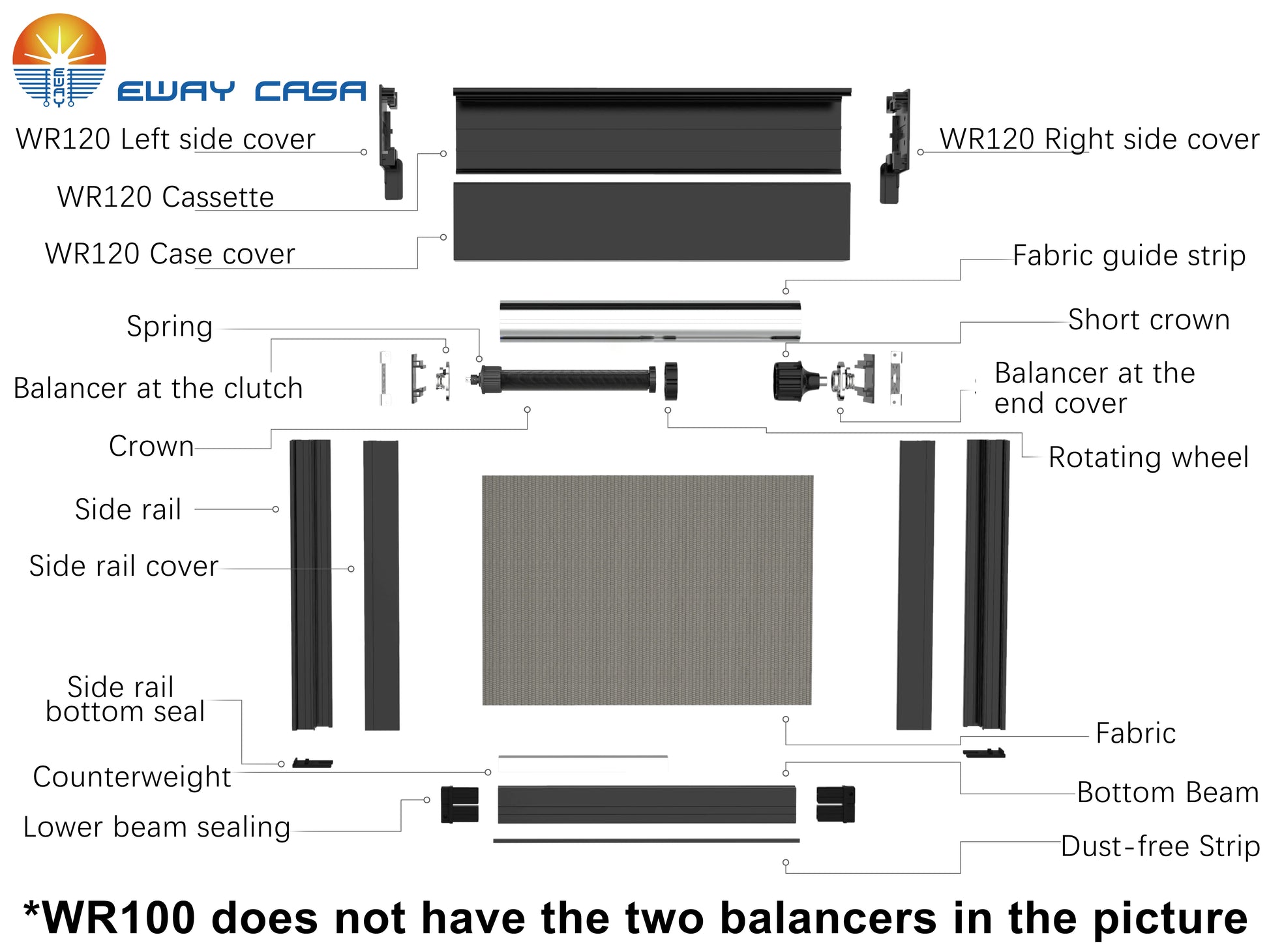

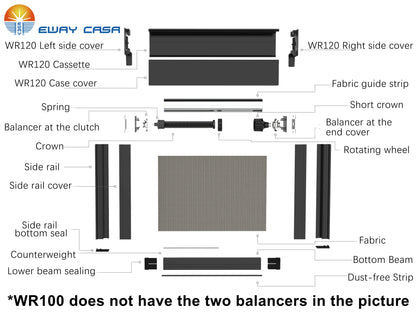

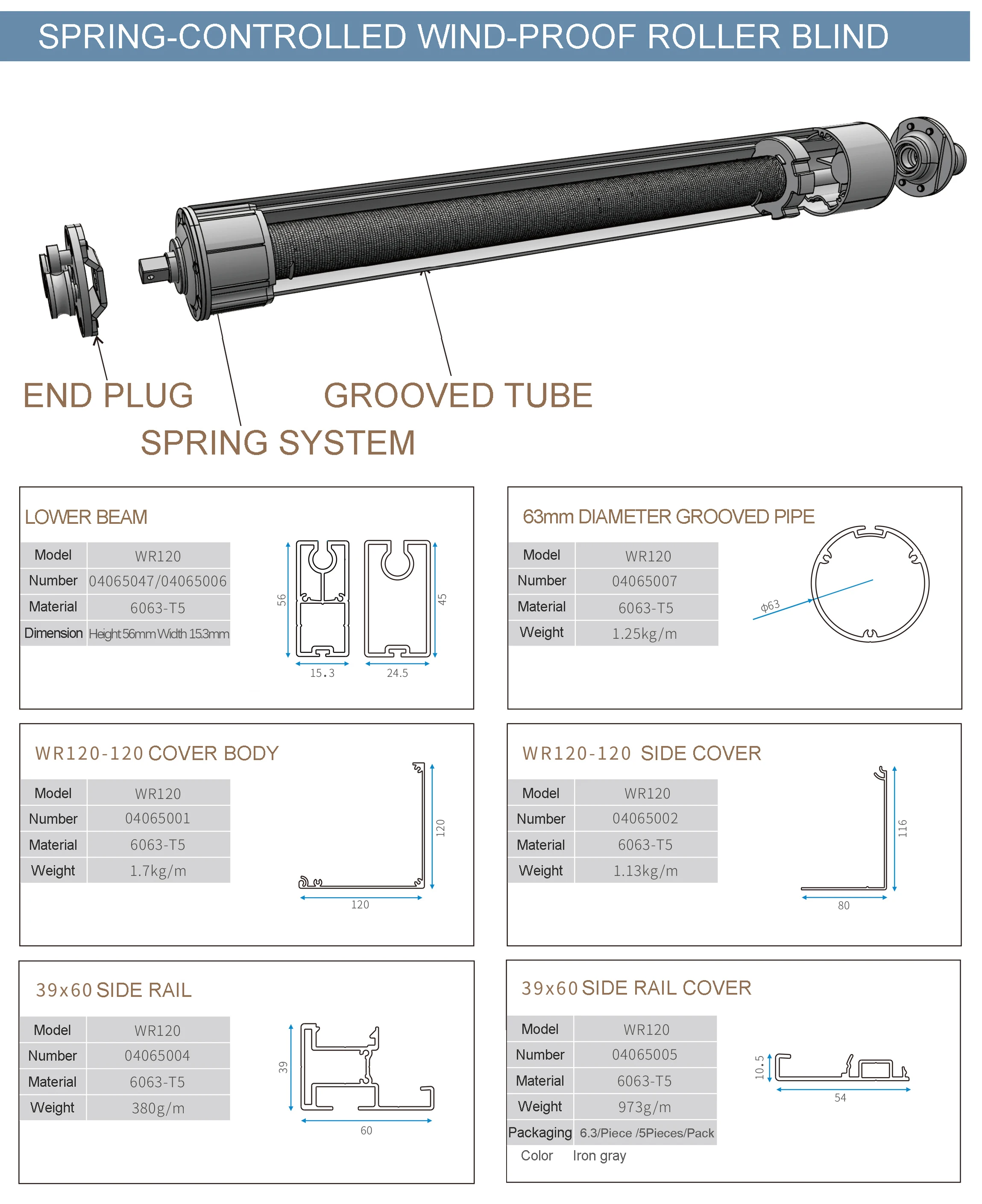

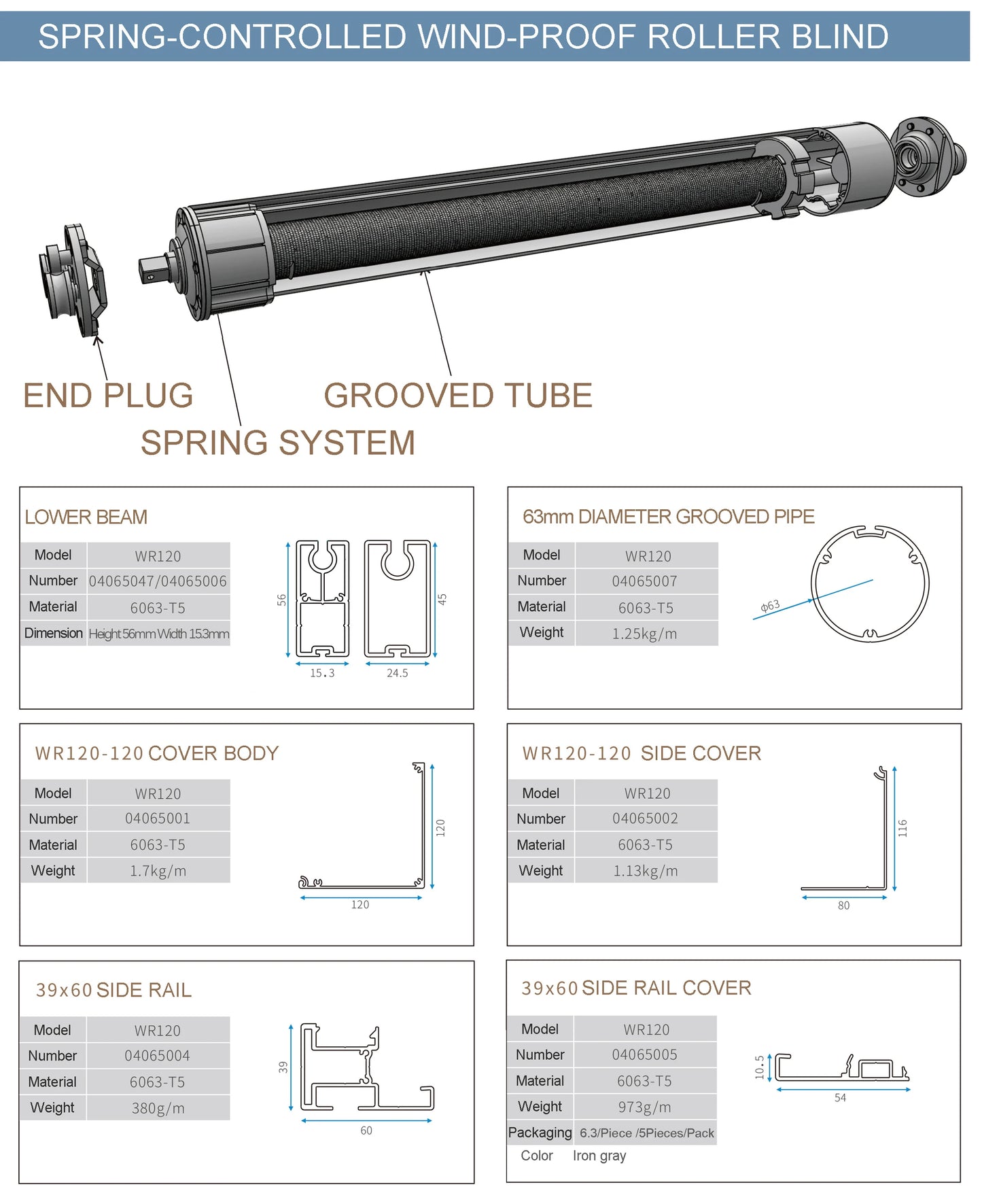

MAIN COMPONENTS

Our Sales Policy

Our policy for a custom item.

As the product is a customized item, it can not be returned or refunded if it's not a quality defect.

If it is of a quality defect and confirmed with us, the item has to be returned and you have to take care of the return shipping and after our receiving and confirming, you can get refund within 7 days. But processing fee charged by Paypal or banks can't be refunded.

But please allow color differences between online display and real objects.

Please permit some size allowance for the finished custom item. Please refer to the agreed invoice.

Motor Warranty

After Sale

Online technical installation support is available at request by email.

If you are satisfied with this product, please leave positive feedback. Your encouragement always drives us go forward.

If you are not, please contract with us before leaving negative feedback, we will do our best to solve the problem and bring our customers a better shopping experience.

Afficher tous les détails

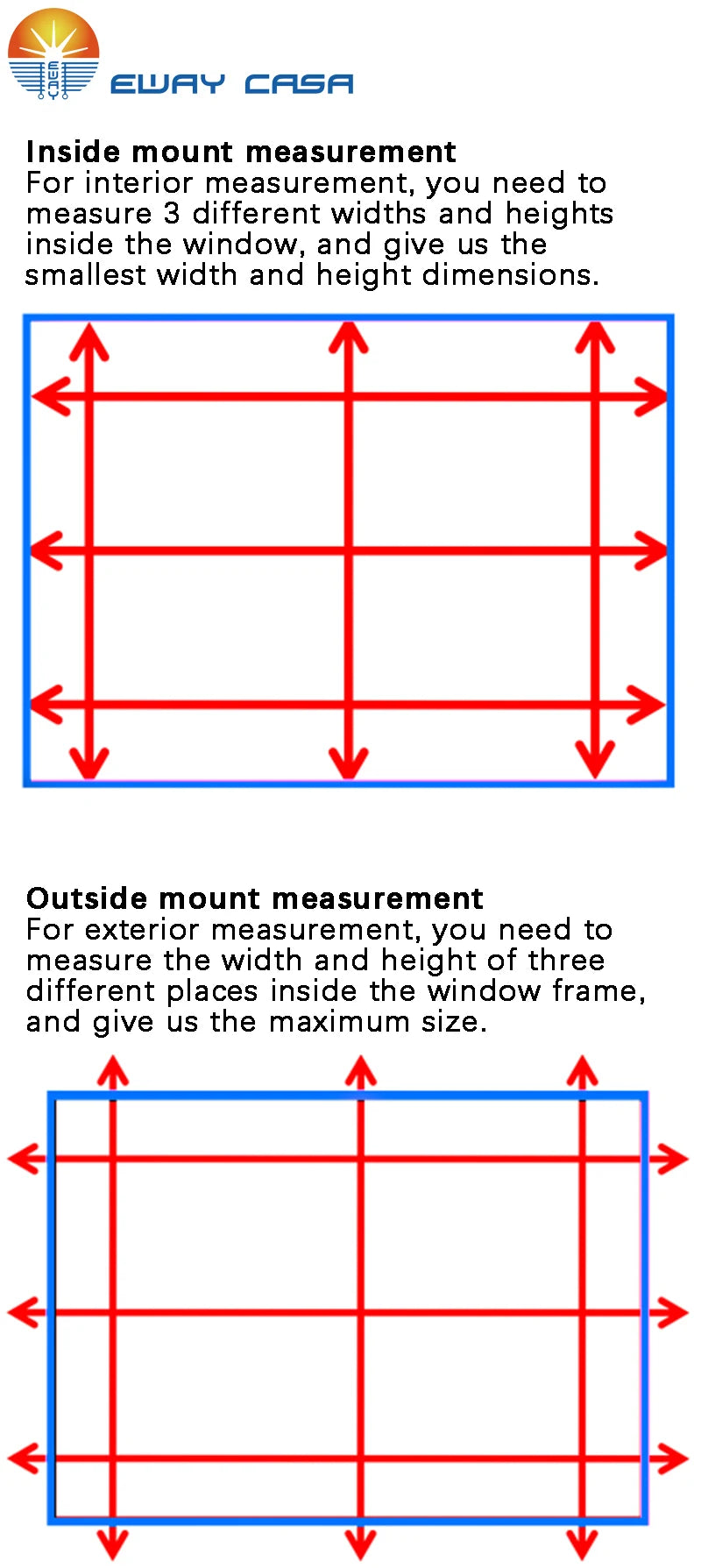

Measuring Tips

For inside mount
You need to measure 3 different widths and heights inside the window,and give us the smallest width and height dimensions.

Also please check if the window frame depth contains enough space to get the shutter mounted inside.

For outside mount
You need to measure the width and height of three different places on the frame, and give us the maximum size

Manual of Assembly the Manual Zip Track Roller Blind
